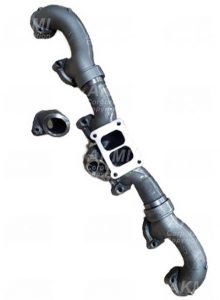

When was the last time that you checked your exhaust manifold? Was it when you last had an exhaust leak?Exhaust Manifold image

What are the Exhaust manifolds?

Exhaust manifolds are the ‘leading role’ of your engine exhaust system.

Yet when there is an exhaust leak they are not the first thing to be checked.

The exhaust system itself has many parts, some are very complex.

The manifold is simple in design and function.

They connect to the cylinder head and funnel hot exhaust fumes into one simple exhaust pipe.

An exhaust leak can be due to a blown exhaust gasket, which is a relatively inexpensive fix if caught soon enough. Leaks can also come from cracks in the manifold itself.

In either instance an exhaust leak left untreated can be harmful to the operator, because hot exhaust fumes escape through these leaks and find their way into the cabin of the vehicle slowly poisoning the driver and any passengers.

Small exposure to exhaust fumes won’t necessarily kill you but can make you sick.

If you were to smell something unusual or experience hot air in the cabin when your heater is not on, you should have your parts and system checked immediately.

Exhaust manifold crack

An exhaust manifold crack is caused by one of 2 reasons.

The first one being the heat cycles the manifold experiences.

Over a significant period of time, these cycles take their toll on the manifold and it just gets to a point where it can’t take the heat anymore.

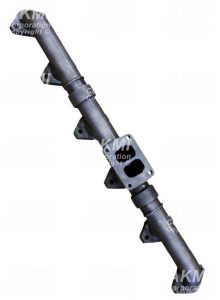

The material starts to weaken and crack in certain Exhaust Manifold crackspots.

Cracks can be spot welded depending on the severity of the crack.

Some may be able to be done yourself, while others should be taken in to be professionally done. Welding of cracks though is only temporary fixes.

The other possibility is the brackets or “hangers” that are holding the weight of the exhaust system itself, break down. When these brackets fail, then the weight of the exhaust systems becomes supported by the exhaust manifold (which they are not meant to support).

Besides leaks, cracks in the manifold can allow outside air in, which in turn can cause the engine to stall or die. If the crack isn’t fixed in a timely fashion, you can also cause major damage to the engine, such as blown head gaskets and overheated heads.

Here are some early detection signs of an exhaust manifold going bad:

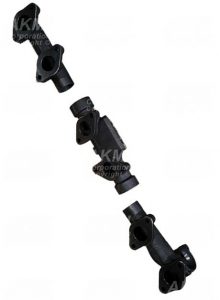

Exhaust Manifold cost repairVisible Cracking:

Which we have discussed already

Excess/Unusual noise

This is caused by pressure forcing air out of the crack in the manifold.

Noises may be heard easier upon a cold start of the engine.

Exhaust Odors

We have discussed the danger of exhaust fumes.

If odors are noticed, please have the exhaust system inspected as soon as possible.

Loss of Performance

Backpressure is not as prevalent and the engine loses some of the power as air leaks from either crack in the manifold or the gasket.

For such a simple design and function, exhaust manifolds are critical pieces to a smooth running engine.

Exhaust manifold temperature

The temperature can vary depending on the vehicle, in the next table you are going to know the average temperatures.

30 mph 70 mph
Level road 250 825
7% grade 360 1020

Resource: Surface Temperatures: Underhood

Exhaust manifold cost and repair cost

The repair cost of a repair for your piece can vary.

The prices of the pieces are about 170$ and 1700$ and the repair cost 300$ or more, that depends on your city and the professional that are gonna repair or change your piece.
